LM5101BMA

In Stock: 3,835

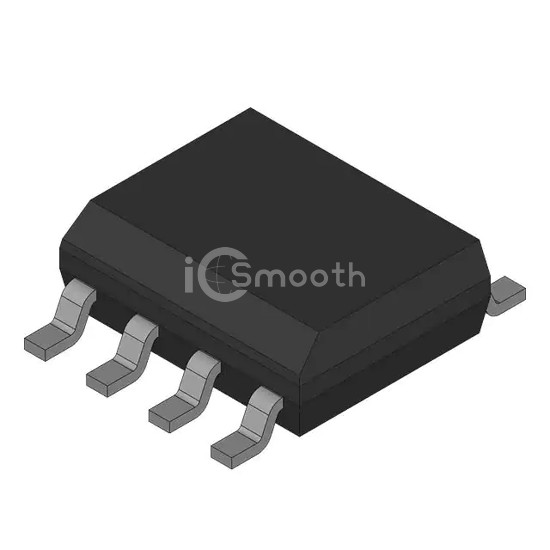

LM5101BMA - National Semiconductor - PMIC - Gate Drivers
REF: LM5101BMA National Semiconductor
LM5101BMA

National Semiconductor

HALF BRIDGE BASED MOSFET DRIVER,

LM5101BMA is a PMIC - Gate Drivers manufactured by National Semiconductor. HALF BRIDGE BASED MOSFET DRIVER,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 3,835

Specifications

15 parameters
Product StatusObsolete
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH2.3V, -
Current - Peak Output (Source, Sink)2A, 2A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)570ns, 430ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
