LM5100ASD

In Stock: 1,000
LM5100ASD - National Semiconductor - PMIC - Gate Drivers
REF: LM5100ASD National Semiconductor

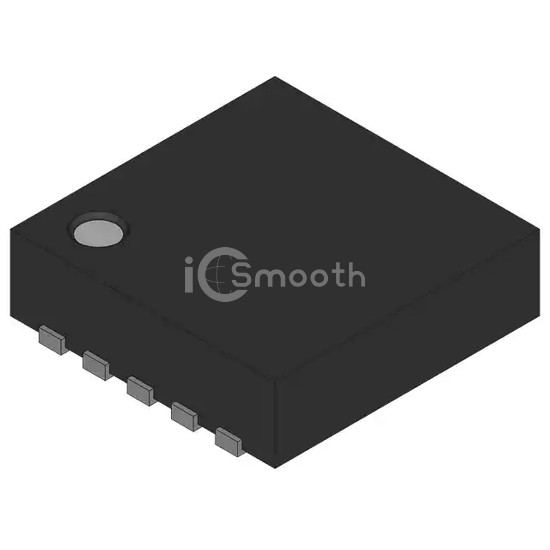

LM5100ASD

National Semiconductor

HALF BRIDGE BASED MOSFET DRIVER,

LM5100ASD is a PMIC - Gate Drivers manufactured by National Semiconductor. HALF BRIDGE BASED MOSFET DRIVER,. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 14V, package / case 10-WDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 1,000

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 14V
Logic Voltage - VIL, VIH2.3V, -
Current - Peak Output (Source, Sink)3A, 3A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)430ns, 260ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-WDFN Exposed Pad
Supplier Device Package10-WSON (4x4)
