Name: LM5010MH
Brand: National Semiconductor
SKU: LM5010MH
Price: 4.27 USD
Availability: InStock

REF: LM5010MH National Semiconductor

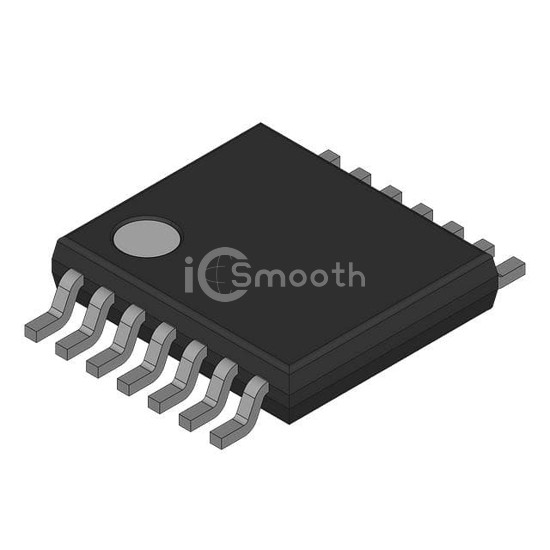

LM5010MH

SWITCHING REG, VOLTAGE-MODE, 1.5

LM5010MH is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. SWITCHING REG, VOLTAGE-MODE, 1.5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 14-PowerTSSOP (0.173", 4.40mm Width), current - output 1A.

Datasheet Request a Quote

In Stock: 4,908

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	8V
Voltage - Input (Max)	75V
Voltage - Output (Min/Fixed)	2.5V

Voltage - Output (Max)	70V
Current - Output	1A
Frequency - Switching	100kHz ~ 1MHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-PowerTSSOP (0.173", 4.40mm Width)
Supplier Device Package	14-HTSSOP
