Name: LM431CCM3
Brand: National Semiconductor
SKU: LM431CCM3
Availability: InStock

REF: LM431CCM3 National Semiconductor

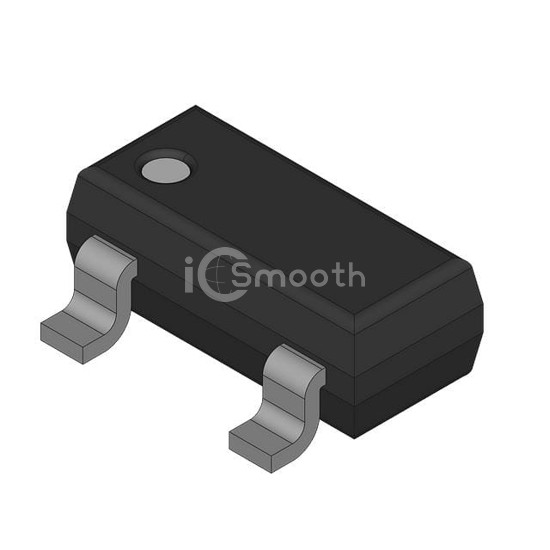

LM431CCM3

IC VREF SHUNT -0.6/+0.4% SOT23-3

LM431CCM3 is a PMIC - Voltage Reference manufactured by National Semiconductor. IC VREF SHUNT -0.6/+0.4% SOT23-3. Key specifications: mounting type Surface Mount, operating temperature 0°C ~ 70°C (TA), package / case TO-236-3, SC-59, SOT-23-3, current - output 100 mA.

Datasheet Request a Quote

In Stock: 3,757

Specifications

17 parameters

Product Status	Active
Reference Type	Shunt
Output Type	Adjustable
Voltage - Output (Min/Fixed)	2.5V
Voltage - Output (Max)	37 V
Current - Output	100 mA
Tolerance	-0.6%, +0.4%
Temperature Coefficient	50ppm/°C Typical
Noise - 0.1Hz to 10Hz	-

Noise - 10Hz to 10kHz	-
Voltage - Input	-
Current - Supply	-
Current - Cathode	1 mA
Operating Temperature	0°C ~ 70°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
