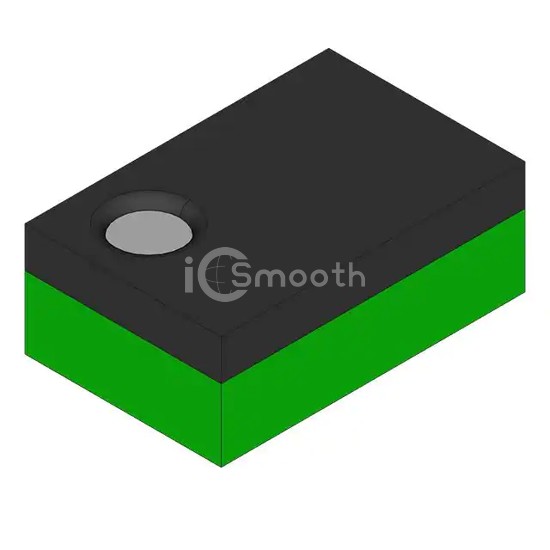

Name: LM3691TL-1.5
Brand: National Semiconductor
SKU: LM3691TL-1.5
Availability: InStock

REF: LM3691TL-1.5 National Semiconductor

LM3691TL-1.5

SWITCHING REG, VOLTAGE-MODE, 1.7

LM3691TL-1.5 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. SWITCHING REG, VOLTAGE-MODE, 1.7. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 6-WFBGA, DSBGA, current - output 1A.

Datasheet Request a Quote

In Stock: 7,250

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	2.3V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	1.5V

Voltage - Output (Max)	-
Current - Output	1A
Frequency - Switching	4MHz
Synchronous Rectifier	Yes
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	6-WFBGA, DSBGA
Supplier Device Package	6-DSBGA (1.5x1.3)
