Name: LM3503ITL-16/NOPB
Brand: National Semiconductor
SKU: LM3503ITL-16/NOPB
Price: 1.65 USD
Availability: InStock

REF: LM3503ITL-16/NOPB National Semiconductor

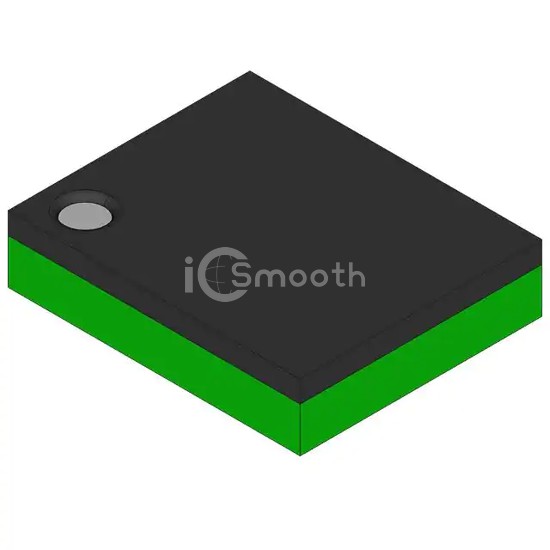

LM3503ITL-16/NOPB

National Semiconductor

IC LED DRVR RGLTR PWM 10DSBGA

LM3503ITL-16/NOPB is a PMIC - LED Drivers manufactured by National Semiconductor. IC LED DRVR RGLTR PWM 10DSBGA. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - output 16V, package / case 10-WFBGA, DSBGA.

Datasheet Request a Quote

In Stock: 487

Tiered Pricing USD

250+ $1.6494 —

500+ $1.5926 -3%

750+ $1.5642 -5%

1,250+ $1.5327 -7%

1,750+ $1.5143 -8%

2,500+ $1.4965 -9%

6,250+ $1.4584 -12% BEST

Specifications

16 parameters

Product Status	Active
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	2
Voltage - Supply (Min)	2.5V
Voltage - Supply (Max)	5.5V
Voltage - Output	16V

Current - Output / Channel	400mA (Switch)
Frequency	1MHz
Dimming	Analog, PWM
Applications	Backlight
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFBGA, DSBGA
Supplier Device Package	10-DSBGA
