Name: LM3204TL
Brand: National Semiconductor
SKU: LM3204TL
Availability: InStock

REF: LM3204TL National Semiconductor

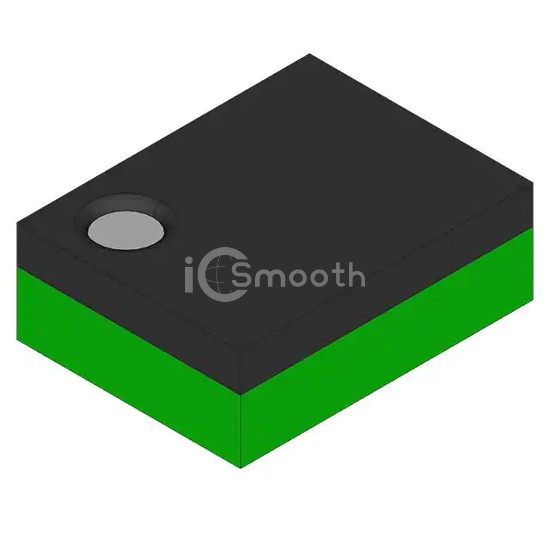

LM3204TL

0.94A, 2200KHZ PBGA10

LM3204TL is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. 0.94A, 2200KHZ PBGA10. Key specifications: mounting type Surface Mount, operating temperature -30°C ~ 85°C (TA), package / case 10-WFBGA, DSBGA, current - output 500mA.

Datasheet Request a Quote

In Stock: 6,672

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	5.5V
Voltage - Output (Min/Fixed)	0.8V

Voltage - Output (Max)	3.6V
Current - Output	500mA
Frequency - Switching	2MHz
Synchronous Rectifier	Yes
Operating Temperature	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-WFBGA, DSBGA
Supplier Device Package	10-DSBGA
