Name: LM317AH
Brand: National Semiconductor
SKU: LM317AH
Price: 16.99 USD
Availability: InStock

REF: LM317AH National Semiconductor

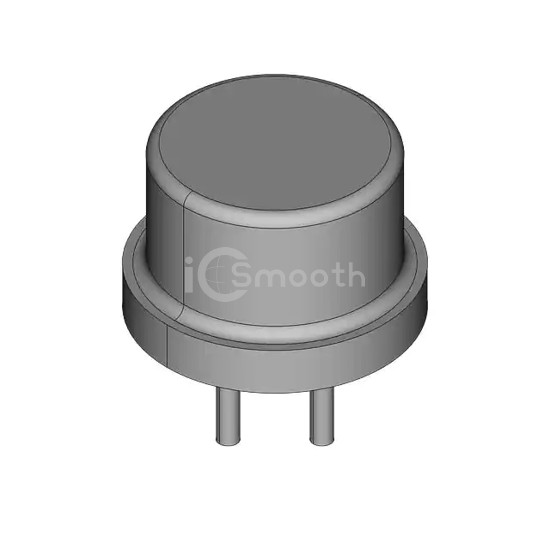

LM317AH

IC REG LIN POS ADJ 1.5A TO39-3

LM317AH is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LIN POS ADJ 1.5A TO39-3. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 125°C, package / case TO-205AD, TO-39-3 Metal Can, current - output 1.5A.

Datasheet Request a Quote

In Stock: 759

Tiered Pricing USD

1+ $16.9900 —

10+ $13.4900 -21%

25+ $12.6156 -26%

100+ $11.6539 -31%

250+ $11.1955 -34%

500+ $10.9192 -36% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	37V
Voltage Dropout (Max)	-
Current - Output	1.5A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	-
PSRR	80dB ~ 65dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39-3
