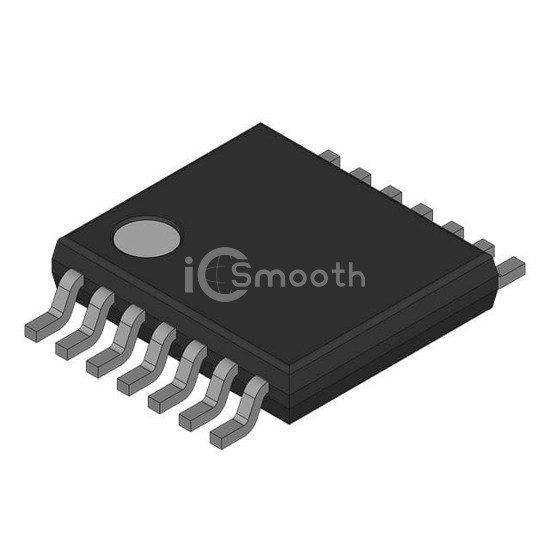

Name: LM3153MHE-3.3/NOPB
Brand: National Semiconductor
SKU: LM3153MHE-3.3/NOPB
Price: 4.46 USD
Availability: InStock

REF: LM3153MHE-3.3/NOPB National Semiconductor

LM3153MHE-3.3/NOPB

National Semiconductor

LM3153 SIMPLE SWITCHER CONTROLL

LM3153MHE-3.3/NOPB is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by National Semiconductor. LM3153 SIMPLE SWITCHER CONTROLL. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8V ~ 18V, package / case 14-TSSOP (0.173", 4.40mm Width) Exposed Pad.

Datasheet Request a Quote

In Stock: 3,509

Tiered Pricing USD

1+ $4.4600 —

10+ $3.3870 -24%

25+ $3.1176 -30%

100+ $2.8219 -37% BEST

Specifications

18 parameters

Product Status	Active
Output Type	Transistor Driver
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Number of Outputs	1
Output Phases	1
Voltage - Supply (Vcc/Vdd)	8V ~ 18V
Frequency - Switching	750kHz

Duty Cycle (Max)	-
Synchronous Rectifier	Yes
Clock Sync	No
Serial Interfaces	-
Control Features	Enable, Soft Start
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-TSSOP (0.173", 4.40mm Width) Exposed Pad
Supplier Device Package	14-HTSSOP
