Name: LM309H
Brand: National Semiconductor
SKU: LM309H
Price: 23.11 USD
Availability: InStock

REF: LM309H National Semiconductor

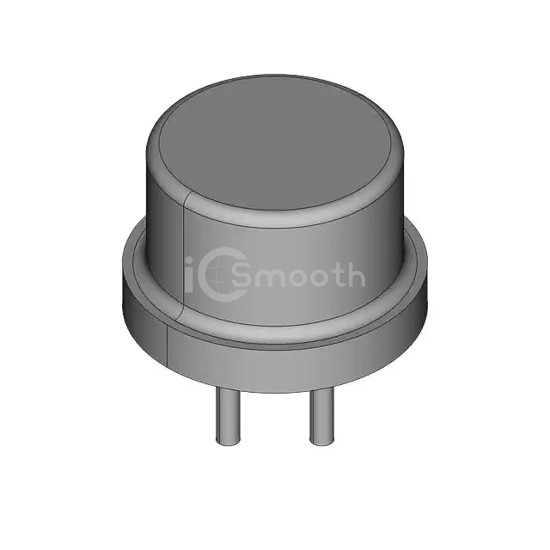

LM309H

IC REG LINEAR 5.05V 1A TO39-3

LM309H is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LINEAR 5.05V 1A TO39-3. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 125°C, package / case TO-205AD, TO-39-3 Metal Can, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 3,054

Tiered Pricing USD

1+ $23.1100 —

10+ $18.5260 -20%

25+ $17.3816 -25%

100+ $16.1240 -30%

250+ $15.5245 -33%

500+ $15.1633 -34% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	25V
Voltage - Output (Min/Fixed)	5.05V
Voltage - Output (Max)	-
Voltage Dropout (Max)	-
Current - Output	1A

Current - Quiescent (Iq)	5.2 mA
Current - Supply (Max)	10 mA
PSRR	-
Control Features	-
Protection Features	Over Temperature
Operating Temperature	0°C ~ 125°C
Mounting Type	Through Hole
Package / Case	TO-205AD, TO-39-3 Metal Can
Supplier Device Package	TO-39-3
