Name: LM2940IMP-10
Brand: National Semiconductor
SKU: LM2940IMP-10
Price: 1.18 USD
Availability: InStock

REF: LM2940IMP-10 National Semiconductor

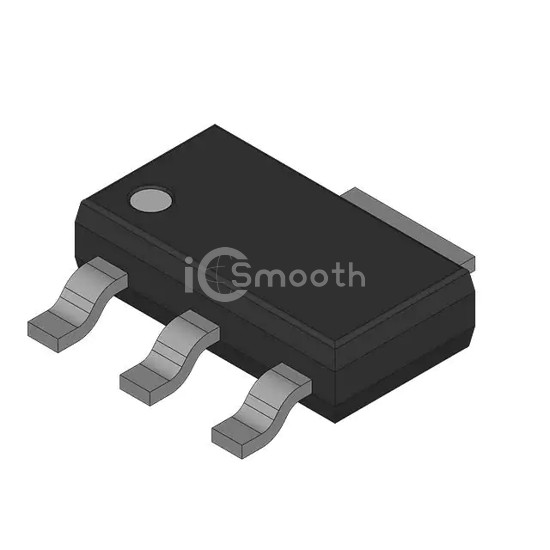

LM2940IMP-10

National Semiconductor

IC REG LINEAR FIXED POS LDO REG

LM2940IMP-10 is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LINEAR FIXED POS LDO REG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case TO-261-4, TO-261AA, current - supply (max) 15 mA.

Datasheet Request a Quote

In Stock: 7,598

Tiered Pricing USD

1,000+ $1.1820 —

2,000+ $1.1511 -3%

3,000+ $1.1357 -4%

5,000+ $1.1186 -5%

7,000+ $1.1086 -6% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	26V
Voltage - Output (Min/Fixed)	10V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1V @ 1A
Current - Output	1A

Current - Quiescent (Iq)	10 mA
Current - Supply (Max)	15 mA
PSRR	63dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit
Operating Temperature	-40°C ~ 85°C
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223-4
