Name: LM2677SD-12
Brand: National Semiconductor
SKU: LM2677SD-12
Price: 4.44 USD
Availability: InStock

REF: LM2677SD-12 National Semiconductor

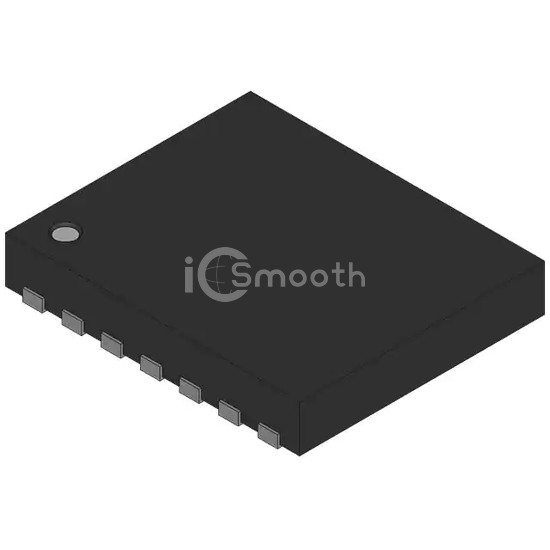

LM2677SD-12

National Semiconductor

8.75A, 280KHZ SWITCHING FREQ-MAX

LM2677SD-12 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. 8.75A, 280KHZ SWITCHING FREQ-MAX. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case 14-VDFN Exposed Pad, current - output 5A.

Datasheet Request a Quote

In Stock: 6,516

Tiered Pricing USD

250+ $4.4369 —

500+ $4.3080 -3%

750+ $4.2434 -4%

1,250+ $4.1719 -6%

1,750+ $4.1301 -7% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	8V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	12V

Voltage - Output (Max)	-
Current - Output	5A
Frequency - Switching	260kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	14-VDFN Exposed Pad
Supplier Device Package	14-VSON (6x5)
