Name: LM2676SX-12
Brand: National Semiconductor
SKU: LM2676SX-12
Price: 3.09 USD
Availability: InStock

REF: LM2676SX-12 National Semiconductor

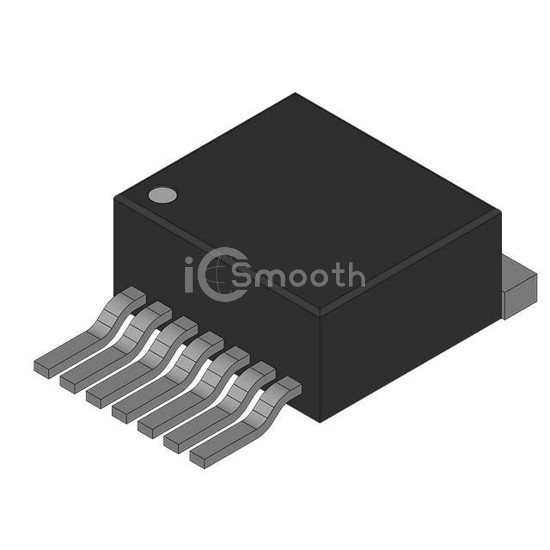

LM2676SX-12

National Semiconductor

SWITCHING REG, VOLTAGE-MODE, 5.4

LM2676SX-12 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. SWITCHING REG, VOLTAGE-MODE, 5.4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA, current - output 3A.

Datasheet Request a Quote

In Stock: 3,633

Tiered Pricing USD

500+ $3.0913 —

1,000+ $3.0105 -3%

1,500+ $2.9701 -4%

2,500+ $2.9253 -5% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	8V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	12V

Voltage - Output (Max)	-
Current - Output	3A
Frequency - Switching	260kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package	DDPAK/TO-263-7
