Name: LM2585SX-12
Brand: National Semiconductor
SKU: LM2585SX-12
Price: 4.58 USD
Availability: InStock

REF: LM2585SX-12 National Semiconductor

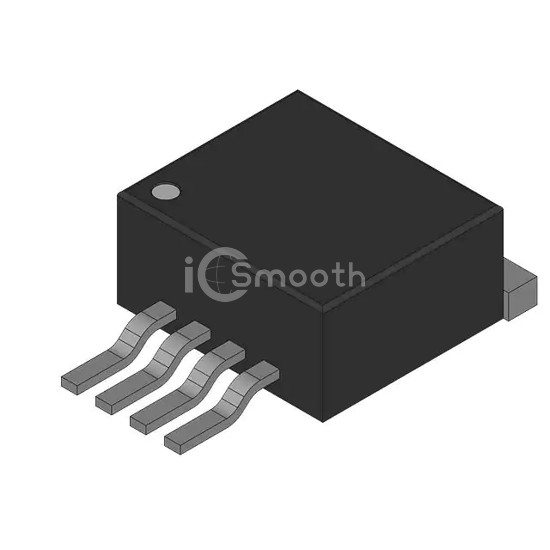

LM2585SX-12

National Semiconductor

7A, 125KHZ BIPOLAR, PSSO5

LM2585SX-12 is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by National Semiconductor. 7A, 125KHZ BIPOLAR, PSSO5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case TO-263-6, D²Pak (5 Leads + Tab), TO-263BA, current - output 3A (Switch).

Datasheet Request a Quote

In Stock: 4,174

Tiered Pricing USD

500+ $4.5832 —

1,000+ $4.4716 -2%

1,500+ $4.4157 -4% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Up, Step-Up/Step-Down
Output Configuration	Positive
Topology	Boost, Flyback, Forward Converter
Output Type	Fixed
Number of Outputs	1
Voltage - Input (Min)	4V
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	12V

Voltage - Output (Max)	-
Current - Output	3A (Switch)
Frequency - Switching	100kHz
Synchronous Rectifier	No
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-263-6, D²Pak (5 Leads + Tab), TO-263BA
Supplier Device Package	DDPAK/TO-263-5
