Name: LM148J
Brand: National Semiconductor
SKU: LM148J
Availability: InStock

REF: LM148J National Semiconductor

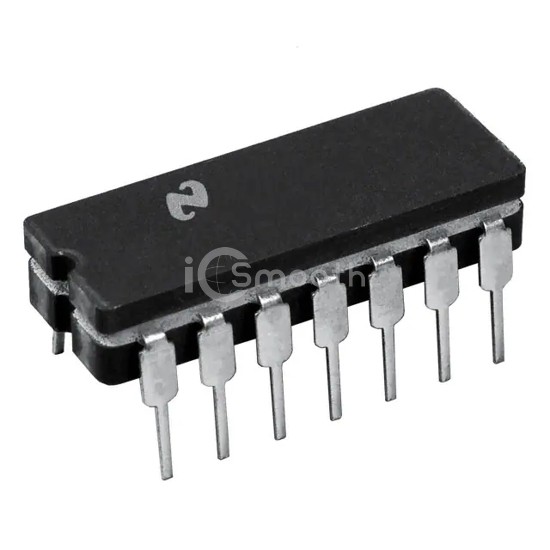

LM148J

IC OPAMP GP 4 CIRCUIT 14CDIP

LM148J is a Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps manufactured by National Semiconductor. IC OPAMP GP 4 CIRCUIT 14CDIP. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 125°C, package / case 14-CDIP (0.300", 7.62mm), current - supply 2.4mA (x4 Channels).

Datasheet Request a Quote

In Stock: 2,007

Specifications

17 parameters

Product Status	Active
Amplifier Type	General Purpose
Number of Circuits	4
Output Type	-
Slew Rate	0.5V/µs
Gain Bandwidth Product	1 MHz
-3db Bandwidth	-
Current - Input Bias	30 nA
Voltage - Input Offset	1 mV

Current - Supply	2.4mA (x4 Channels)
Current - Output / Channel	25 mA
Voltage - Supply Span (Min)	10 V
Voltage - Supply Span (Max)	44 V
Operating Temperature	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	14-CDIP (0.300", 7.62mm)
Supplier Device Package	14-CDIP
