Name: LM1117IMPX-5.0
Brand: National Semiconductor
SKU: LM1117IMPX-5.0
Availability: InStock

REF: LM1117IMPX-5.0 National Semiconductor

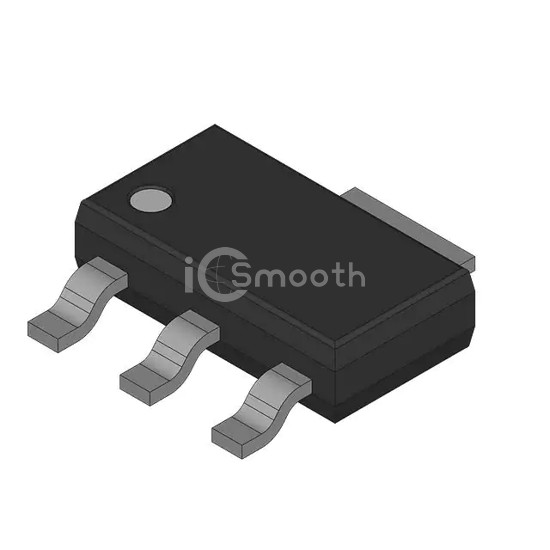

LM1117IMPX-5.0

IC REG LINEAR FIXED POS LDO REG

LM1117IMPX-5.0 is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LINEAR FIXED POS LDO REG. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-261-4, TO-261AA, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 7,829

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	15V
Voltage - Output (Min/Fixed)	5V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.2V @ 800mA
Current - Output	800mA

Current - Quiescent (Iq)	5 mA
Current - Supply (Max)	10 mA
PSRR	75dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223-4
