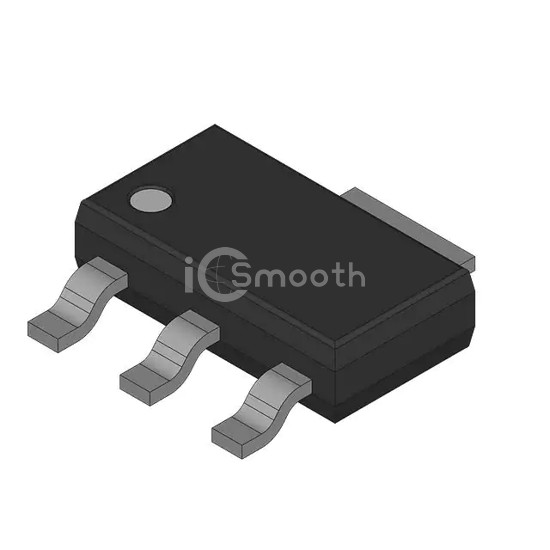

Name: LM1117IMP-ADJ
Brand: National Semiconductor
SKU: LM1117IMP-ADJ
Price: 0.45 USD
Availability: InStock

REF: LM1117IMP-ADJ National Semiconductor

LM1117IMP-ADJ

National Semiconductor

IC REG LIN POS ADJ 800MA SOT223

LM1117IMP-ADJ is a PMIC - Voltage Regulators - Linear manufactured by National Semiconductor. IC REG LIN POS ADJ 800MA SOT223. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case TO-261-4, TO-261AA, current - supply (max) 10 mA.

Datasheet Request a Quote

In Stock: 7,669

Tiered Pricing USD

1,000+ $0.4508 —

2,000+ $0.4369 -3%

3,000+ $0.4299 -5%

5,000+ $0.4222 -6%

7,000+ $0.4176 -7%

10,000+ $0.4133 -8% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	15V
Voltage - Output (Min/Fixed)	1.25V
Voltage - Output (Max)	13.8V
Voltage Dropout (Max)	1.2V @ 800mA
Current - Output	800mA

Current - Quiescent (Iq)	5 mA
Current - Supply (Max)	10 mA
PSRR	75dB (120Hz)
Control Features	-
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SOT-223-4
