NMUSB2022PMC-R7

In Stock: 2

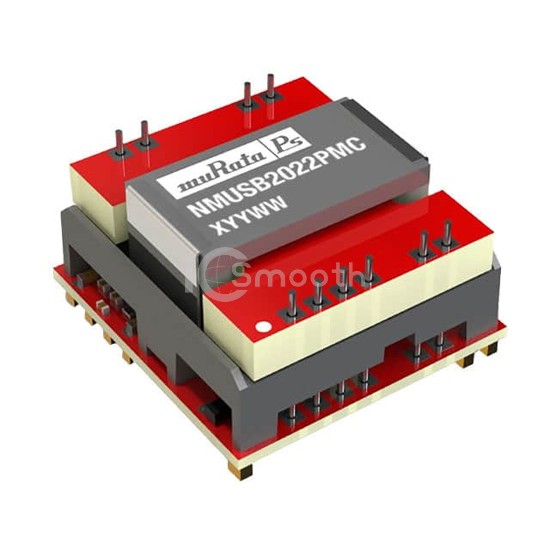

NMUSB2022PMC-R7 - Murata Power Solutions Inc. - Digital Isolators
REF: NMUSB2022PMC-R7 Murata Power Solutions Inc.
NMUSB2022PMC-R7

Murata Power Solutions Inc.

DGT ISOL 4000VRMS 1CH USB MODULE

NMUSB2022PMC-R7 is a Digital Isolators manufactured by Murata Power Solutions Inc.. DGT ISOL 4000VRMS 1CH USB MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 4.5V ~ 5.5V, package / case 13-SMD Module.

Datasheet Request a Quote

In Stock: 2

Specifications

18 parameters
Product StatusActive
TechnologyCapacitive Coupling
TypeUSB
Isolated PowerYes
Number of Channels2
Inputs - Side 1/Side 21/1
Channel TypeBidirectional
Voltage - Isolation4000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Data Rate12Mbps
Propagation Delay tpLH / tpHL (Max)-
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)-
Voltage - Supply4.5V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount
Package / Case13-SMD Module
Supplier Device PackageModule
