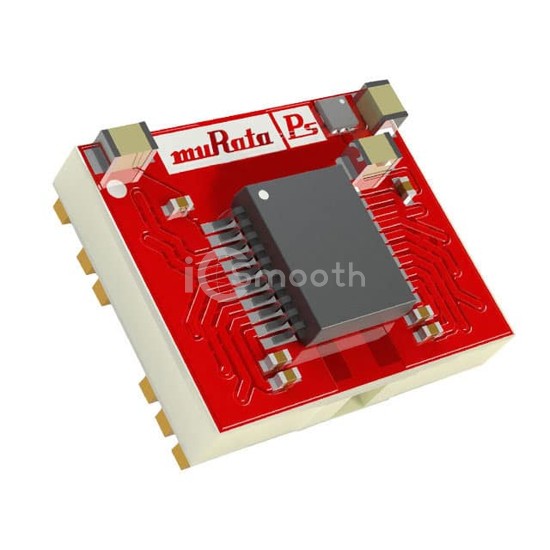

Name: NMTTLD6S5MC-R7
Brand: Murata Power Solutions Inc.
SKU: NMTTLD6S5MC-R7
Price: 17.64 USD
Availability: InStock

REF: NMTTLD6S5MC-R7 Murata Power Solutions Inc.

NMTTLD6S5MC-R7

Murata Power Solutions Inc.

DGTL ISOL 1500VAC 2CH GEN PURP

NMTTLD6S5MC-R7 is a Digital Isolators manufactured by Murata Power Solutions Inc.. DGTL ISOL 1500VAC 2CH GEN PURP. Key specifications: operating temperature -40°C ~ 95°C, voltage - supply 4.5V ~ 5.5V, package / case Module, data rate 25Mbps.

Datasheet Request a Quote

In Stock: 45

Tiered Pricing USD

4+ $17.6400 —

20+ $16.9300 -4% BEST

Specifications

18 parameters

Product Status	Obsolete
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	Yes
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Channel Type	Unidirectional
Voltage - Isolation	1500VAC
Common Mode Transient Immunity (Min)	25kV/µs

Data Rate	25Mbps
Propagation Delay tpLH / tpHL (Max)	33ns, 33ns
Pulse Width Distortion (Max)	3ns
Rise / Fall Time (Typ)	-
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 95°C
Mounting Type	-
Package / Case	Module
Supplier Device Package	-
