Name: NMTTLD6S5MC-R13
Brand: Murata Power Solutions Inc.
SKU: NMTTLD6S5MC-R13
Availability: InStock

REF: NMTTLD6S5MC-R13 Murata Power Solutions Inc.

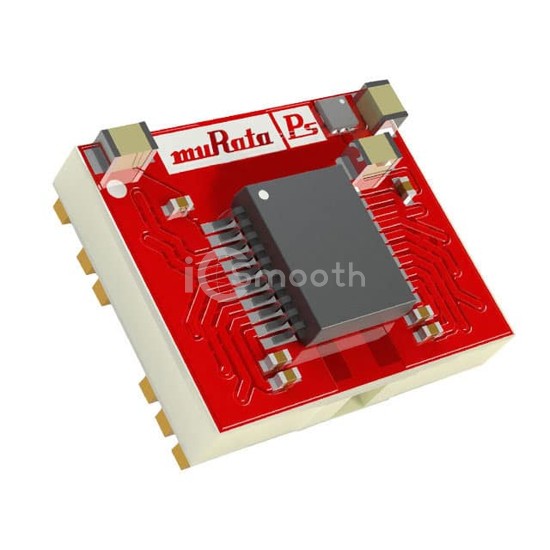

NMTTLD6S5MC-R13

DGTL ISO 1500VAC 2CH GP MODULE

NMTTLD6S5MC-R13 is a Digital Isolators manufactured by Murata Power Solutions Inc.. DGTL ISO 1500VAC 2CH GP MODULE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 95°C, voltage - supply 4.5V ~ 5.5V, package / case 16-SMD Module.

Datasheet Request a Quote

In Stock: 4,770

Specifications

18 parameters

Product Status	Active
Technology	Magnetic Coupling
Type	General Purpose
Isolated Power	Yes
Number of Channels	2
Inputs - Side 1/Side 2	1/1
Channel Type	Unidirectional
Voltage - Isolation	1500VAC
Common Mode Transient Immunity (Min)	25kV/µs

Data Rate	25Mbps
Propagation Delay tpLH / tpHL (Max)	33ns, 33ns
Pulse Width Distortion (Max)	3ns
Rise / Fall Time (Typ)	-
Voltage - Supply	4.5V ~ 5.5V
Operating Temperature	-40°C ~ 95°C
Mounting Type	Surface Mount
Package / Case	16-SMD Module
Supplier Device Package	Module
