Name: NM485DC
Brand: Murata Power Solutions Inc.
SKU: NM485DC
Availability: InStock

REF: NM485DC Murata Power Solutions Inc.

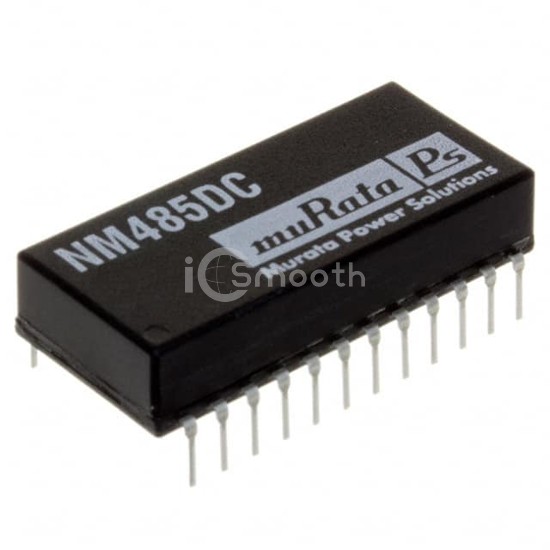

NM485DC

DGTL ISO 1000VRMS 4CH GP 24DIL

NM485DC is a Digital Isolators manufactured by Murata Power Solutions Inc.. DGTL ISO 1000VRMS 4CH GP 24DIL. Key specifications: mounting type Through Hole, operating temperature 0°C ~ 60°C, voltage - supply 4.75V ~ 5.25V, package / case 24-DIP (0.667", 16.95mm).

Datasheet Request a Quote

In Stock: 1,622

Specifications

18 parameters

Product Status	Obsolete
Technology	Capacitive Coupling
Type	General Purpose
Isolated Power	No
Number of Channels	4
Inputs - Side 1/Side 2	2/2
Channel Type	Unidirectional
Voltage - Isolation	1000Vrms
Common Mode Transient Immunity (Min)	-

Data Rate	1.25Mbps
Propagation Delay tpLH / tpHL (Max)	-
Pulse Width Distortion (Max)	-
Rise / Fall Time (Typ)	-
Voltage - Supply	4.75V ~ 5.25V
Operating Temperature	0°C ~ 60°C
Mounting Type	Through Hole
Package / Case	24-DIP (0.667", 16.95mm)
Supplier Device Package	24-DIL
