Name: MRUS73C-001
Brand: Murata Electronics
SKU: MRUS73C-001
Availability: InStock

REF: MRUS73C-001 Murata Electronics

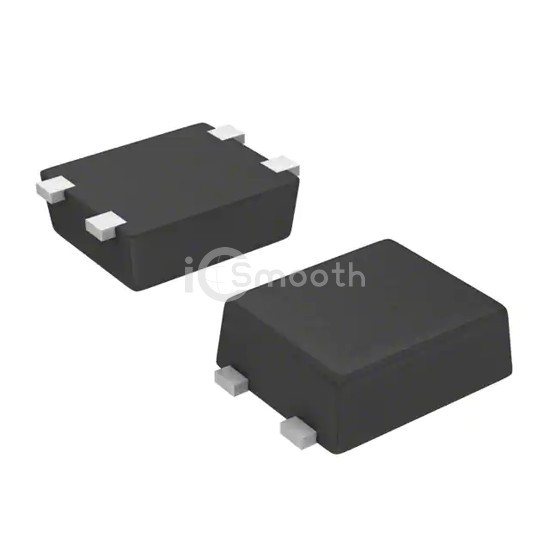

MRUS73C-001

MAG SWITCH UNIPOLAR DL 4MINI FLP

MRUS73C-001 is a Magnetic Sensors - Switches (Solid State) manufactured by Murata Electronics. MAG SWITCH UNIPOLAR DL 4MINI FLP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2.4V ~ 3.8V, package / case 4-SMD, Flat Leads.

Datasheet Request a Quote

In Stock: 1,140

Specifications

15 parameters

Product Status	Active
Function	Unipolar Switch, Dual
Technology	Magnetoresistive
Polarization	South Pole
Sensing Range	2.8mT Trip, 1.4mT Release; 3mT Trip, 1.6mT Release
Test Condition	25°C
Voltage - Supply	2.4V ~ 3.8V
Current - Supply (Max)	3mA

Current - Output (Max)	-
Output Type	Push-Pull
Features	Temperature Compensated
Operating Temperature	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Supplier Device Package	4-Mini FLP
Package / Case	4-SMD, Flat Leads
