MGW20N120

In Stock: 93
MGW20N120 - Motorola - Transistors - IGBTs - Single
REF: MGW20N120 Motorola
MGW20N120

Motorola

IGBT, 28A, 1200V, N-CHANNEL, TO-

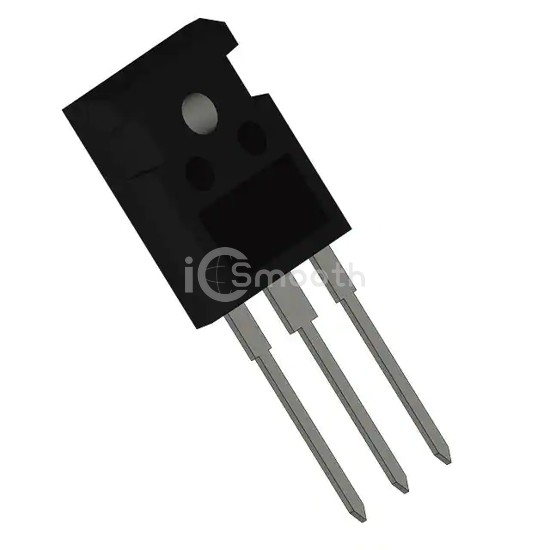

MGW20N120 is a Transistors - IGBTs - Single manufactured by Motorola. IGBT, 28A, 1200V, N-CHANNEL, TO-. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 150°C (TJ), package / case TO-247-3, current - collector (ic) (max) 28 A.

Datasheet Request a Quote

In Stock: 93

Specifications

17 parameters
Product StatusActive
IGBT Type-
Voltage - Collector Emitter Breakdown (Max)1200 V
Current - Collector (Ic) (Max)28 A
Current - Collector Pulsed (Icm)56 A
Vce(on) (Max) @ Vge, Ic4.99V @ 15V, 20A
Power - Max174 W
Switching Energy1.65mJ (off)
Input TypeStandard
Gate Charge62 nC
Td (on/off) @ 25°C88ns/190ns
Test Condition720V, 20A, 20Ohm, 15V
Reverse Recovery Time (trr)-
Operating Temperature-55°C ~ 150°C (TJ)
Mounting TypeThrough Hole
Package / CaseTO-247-3
Supplier Device PackageTO-247
