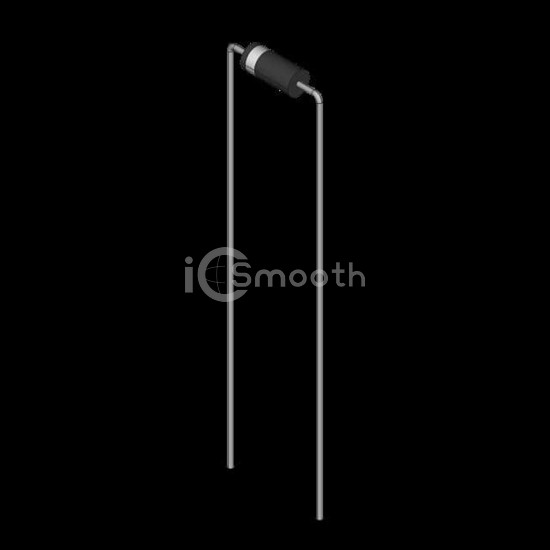

Name: 1N5252BRL
Brand: Motorola
SKU: 1N5252BRL
Availability: InStock

REF: 1N5252BRL Motorola

1N5252BRL

DIODE ZENER 24V 500MW DO204AH

1N5252BRL is a Diodes - Zener - Single manufactured by Motorola. DIODE ZENER 24V 500MW DO204AH. Key specifications: mounting type Through Hole, operating temperature -65°C ~ 200°C (TJ), package / case DO-204AH, DO-35, Axial, power - max 500 mW.

Datasheet Request a Quote

In Stock: 3,622

Specifications

11 parameters

Product Status	Active
Voltage - Zener (Nom) (Vz)	24 V
Tolerance	±5%
Power - Max	500 mW
Impedance (Max) (Zzt)	33 Ohms
Current - Reverse Leakage @ Vr	100 nA @ 18 V

Voltage - Forward (Vf) (Max) @ If	1.2 V @ 200 mA
Operating Temperature	-65°C ~ 200°C (TJ)
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	DO-204AH (DO-35 Glass)
