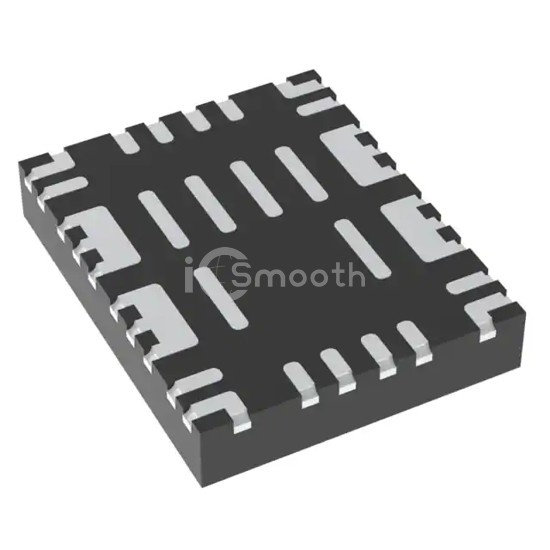

Name: MPQ8875AGVE-AEC1-P
Brand: Monolithic Power Systems Inc.
SKU: MPQ8875AGVE-AEC1-P
Price: 6.32 USD
Availability: InStock

REF: MPQ8875AGVE-AEC1-P Monolithic Power Systems Inc.

MPQ8875AGVE-AEC1-P

Monolithic Power Systems Inc.

36V, 5A, FOUR-SWITCH, SYNCHRONOU

MPQ8875AGVE-AEC1-P is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Monolithic Power Systems Inc.. 36V, 5A, FOUR-SWITCH, SYNCHRONOU. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 150°C (TJ), package / case 34-PowerVQFN, current - output 5A.

Datasheet Request a Quote

In Stock: 9,335

Specifications

17 parameters

Product Status	Active
Function	Step-Up/Step-Down
Output Configuration	Positive
Topology	Buck-Boost
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.2V
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	0.5V

Voltage - Output (Max)	30V
Current - Output	5A
Frequency - Switching	200kHz ~ 1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	34-PowerVQFN
Supplier Device Package	34-QFN (4x5)
