Name: MPQ4480GV-AEC1-P
Brand: Monolithic Power Systems Inc.
SKU: MPQ4480GV-AEC1-P
Price: 4.96 USD
Availability: InStock

REF: MPQ4480GV-AEC1-P Monolithic Power Systems Inc.

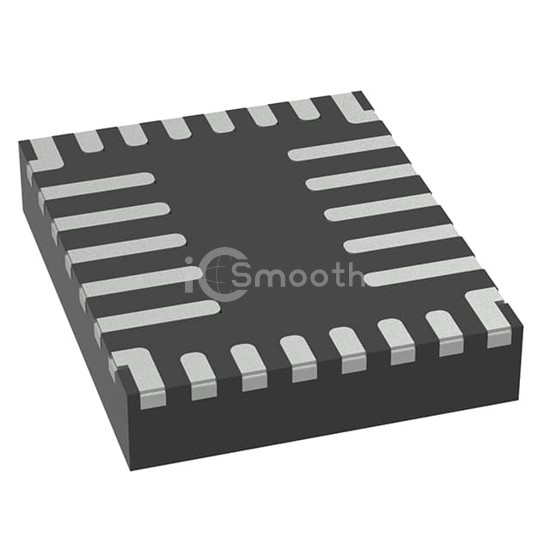

MPQ4480GV-AEC1-P

Monolithic Power Systems Inc.

6A 36V STEP-DOWN CONVERTERFOR

MPQ4480GV-AEC1-P is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Monolithic Power Systems Inc.. 6A 36V STEP-DOWN CONVERTERFOR. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TJ), package / case 25-PowerVFQFN, current - output 6A.

Datasheet Request a Quote

In Stock: 1,558

Tiered Pricing USD

1+ $4.9600 —

10+ $3.7800 -24%

25+ $3.4840 -30%

100+ $3.1590 -36%

250+ $3.0041 -39% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	4.2V
Voltage - Input (Max)	36V
Voltage - Output (Min/Fixed)	1V

Voltage - Output (Max)	20V
Current - Output	6A
Frequency - Switching	235kHz ~ 2.2MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	25-PowerVFQFN
Supplier Device Package	25-QFN (4x5)
