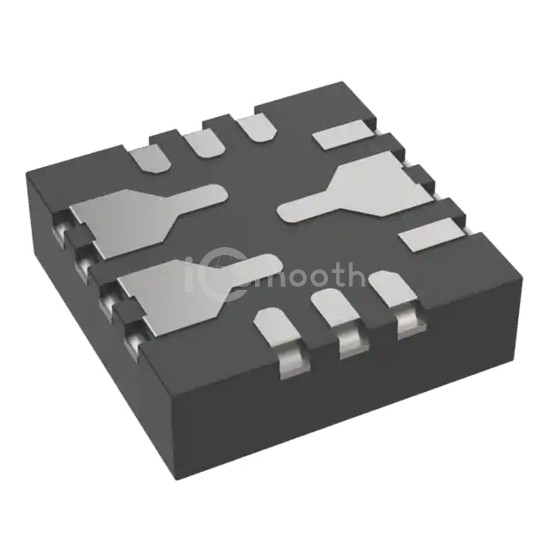

Name: MPQ2167AGQE-AEC1-P
Brand: Monolithic Power Systems Inc.
SKU: MPQ2167AGQE-AEC1-P
Price: 4.12 USD
Availability: InStock

REF: MPQ2167AGQE-AEC1-P Monolithic Power Systems Inc.

MPQ2167AGQE-AEC1-P

Monolithic Power Systems Inc.

6V, 6A, FREQUENCY-CONFIGURABLE S

MPQ2167AGQE-AEC1-P is a PMIC - Voltage Regulators - DC DC Switching Regulators manufactured by Monolithic Power Systems Inc.. 6V, 6A, FREQUENCY-CONFIGURABLE S. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TJ), package / case 14-PowerVFQFN, current - output 6A.

Datasheet Request a Quote

In Stock: 9,363

Tiered Pricing USD

1+ $4.1200 —

10+ $3.1170 -24%

25+ $2.8668 -30%

100+ $2.5914 -37%

250+ $2.4600 -40% BEST

Specifications

17 parameters

Product Status	Active
Function	Step-Down
Output Configuration	Positive
Topology	Buck
Output Type	Adjustable
Number of Outputs	1
Voltage - Input (Min)	2.7V
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	0.606V

Voltage - Output (Max)	6V
Current - Output	6A
Frequency - Switching	450kHz ~ 2.1MHz
Synchronous Rectifier	Yes
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	14-PowerVFQFN
Supplier Device Package	14-QFN (3x3)
