Name: MPQ2013AGJE-33-C672-Z
Brand: Monolithic Power Systems Inc.
SKU: MPQ2013AGJE-33-C672-Z
Price: 0.75 USD
Availability: InStock

REF: MPQ2013AGJE-33-C672-Z Monolithic Power Systems Inc.

MPQ2013AGJE-33-C672-Z

Monolithic Power Systems Inc.

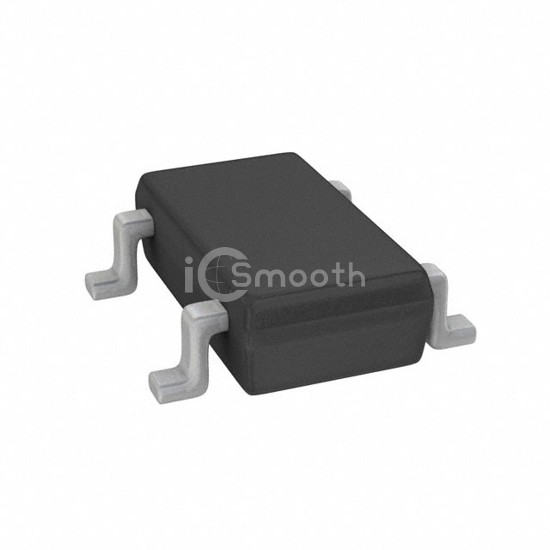

IC REG LIN 3.3V 150MA TSOT23-4

MPQ2013AGJE-33-C672-Z is a PMIC - Voltage Regulators - Linear manufactured by Monolithic Power Systems Inc.. IC REG LIN 3.3V 150MA TSOT23-4. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOT-23-4 Thin, TSOT-23-4, current - output 150mA.

Datasheet Request a Quote

In Stock: 4,467

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.1V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	50 µA
Current - Supply (Max)	-
PSRR	58dB ~ 41dB (100Hz ~ 1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-4 Thin, TSOT-23-4
Supplier Device Package	TSOT-23-4
