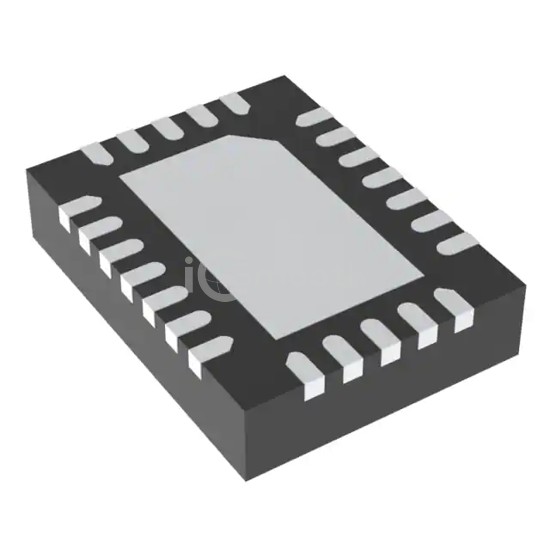

Name: MP6543HGL-B-P
Brand: Monolithic Power Systems Inc.
SKU: MP6543HGL-B-P
Price: 3.10 USD
Availability: InStock

REF: MP6543HGL-B-P Monolithic Power Systems Inc.

MP6543HGL-B-P

Monolithic Power Systems Inc.

22V, 2A, THREE-PHASE POWER STAGE

MP6543HGL-B-P is a PMIC - Motor Drivers, Controllers manufactured by Monolithic Power Systems Inc.. 22V, 2A, THREE-PHASE POWER STAGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3V ~ 22V, package / case 24-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 485

Tiered Pricing USD

1+ $3.1000 —

10+ $2.3200 -25%

25+ $2.1260 -31%

100+ $1.9125 -38%

250+ $1.8107 -42% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Multiphase
Motor Type - AC, DC	Brushless DC (BLDC)
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (3)
Interface	PWM
Technology	NMOS
Step Resolution	-

Applications	Brushless DC (BLDC)
Current - Output	2A
Voltage - Supply	3V ~ 22V
Voltage - Load	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-QFN (3x4)
