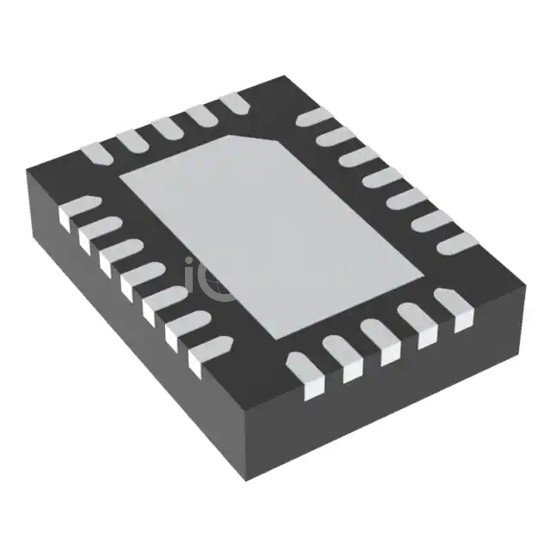

Name: MP6543HGL-A-Z
Brand: Monolithic Power Systems Inc.
SKU: MP6543HGL-A-Z
Price: 2.75 USD
Availability: InStock

REF: MP6543HGL-A-Z Monolithic Power Systems Inc.

MP6543HGL-A-Z

Monolithic Power Systems Inc.

22V, 2A, THREE-PHASE POWER STAGE

MP6543HGL-A-Z is a PMIC - Motor Drivers, Controllers manufactured by Monolithic Power Systems Inc.. 22V, 2A, THREE-PHASE POWER STAGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 3V ~ 22V, package / case 24-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,465

Tiered Pricing USD

1+ $2.7500 —

10+ $2.0510 -25%

25+ $1.8760 -32%

100+ $1.6842 -39%

250+ $1.5927 -42%

500+ $1.5375 -44%

1,000+ $1.4921 -46% BEST

Specifications

16 parameters

Product Status	Active
Motor Type - Stepper	Multiphase
Motor Type - AC, DC	Brushless DC (BLDC)
Function	Driver - Fully Integrated, Control and Power Stage
Output Configuration	Half Bridge (3)
Interface	PWM
Technology	NMOS
Step Resolution	-

Applications	Brushless DC (BLDC)
Current - Output	2A
Voltage - Supply	3V ~ 22V
Voltage - Load	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-QFN (3x4)
