MP6536DU-LF-Z

In Stock: 2,478

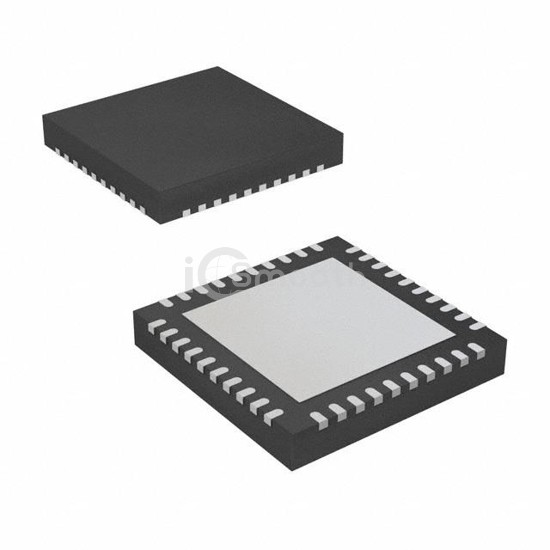

MP6536DU-LF-Z - Monolithic Power Systems Inc. - PMIC - Full, Half-Bridge Drivers
REF: MP6536DU-LF-Z Monolithic Power Systems Inc.
MP6536DU-LF-Z

Monolithic Power Systems Inc.

26V, 5.5A, 3-CHANNEL HALF-BRIDGE

MP6536DU-LF-Z is a PMIC - Full, Half-Bridge Drivers manufactured by Monolithic Power Systems Inc.. 26V, 5.5A, 3-CHANNEL HALF-BRIDGE. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 5V ~ 26V, package / case 40-VFQFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,478

Tiered Pricing USD
1+ $2.9100 —
10+ $2.1770 -25%
25+ $1.9932 -32%
100+ $1.7909 -38%
250+ $1.6945 -42%
500+ $1.6364 -44%
1,000+ $1.5886 -45%
2,500+ $1.5382 -47% BEST

Specifications

17 parameters
Product StatusActive
Output ConfigurationHalf Bridge (3)
ApplicationsDC Motors, General Purpose
InterfaceLogic, PWM
Load TypeCapacitive
TechnologyPower MOSFET
Rds On (Typ)140mOhm LS + HS
Current - Output / Channel5.5A
Current - Peak Output5.5A
Voltage - Supply5V ~ 26V
Voltage - Load5V ~ 26V
Operating Temperature-40°C ~ 125°C (TJ)
FeaturesBootstrap Circuit
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit, UVLO
Mounting TypeSurface Mount
Package / Case40-VFQFN Exposed Pad
Supplier Device Package40-QFN (5x5)
