Name: MP2018GZD-33-Z
Brand: Monolithic Power Systems Inc.
SKU: MP2018GZD-33-Z
Price: 0.78 USD
Availability: InStock

REF: MP2018GZD-33-Z Monolithic Power Systems Inc.

MP2018GZD-33-Z

Monolithic Power Systems Inc.

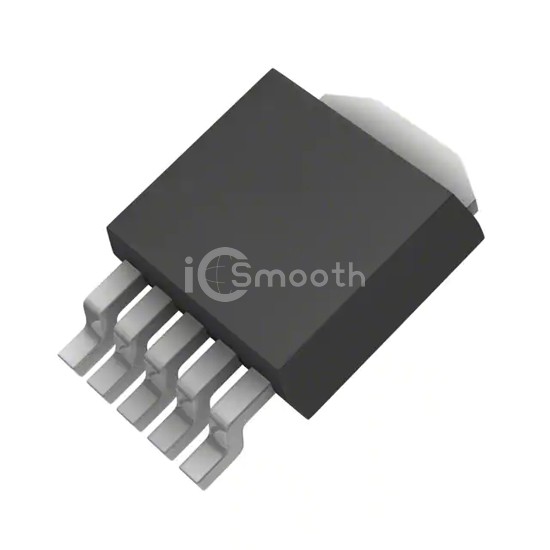

IC REG LINEAR 3.3V 500MA TO252-5

MP2018GZD-33-Z is a PMIC - Voltage Regulators - Linear manufactured by Monolithic Power Systems Inc.. IC REG LINEAR 3.3V 500MA TO252-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case TO-252-6, DPak (5 Leads + Tab), current - supply (max) 150 µA.

Datasheet Request a Quote

In Stock: 8,349

Tiered Pricing USD

2,500+ $0.7820 —

5,000+ $0.7645 -2%

7,500+ $0.7557 -3%

12,500+ $0.7460 -5% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	16V
Voltage - Output (Min/Fixed)	3.3V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.3V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	17 µA
Current - Supply (Max)	150 µA
PSRR	57dB ~ 51dB (100Hz ~ 100kHz)
Control Features	Power Good
Protection Features	Over Current, Over Temperature, Short Circuit
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	TO-252-5
