Name: MP2014GZD-36-P
Brand: Monolithic Power Systems Inc.
SKU: MP2014GZD-36-P
Price: 1.14 USD
Availability: InStock

REF: MP2014GZD-36-P Monolithic Power Systems Inc.

MP2014GZD-36-P

Monolithic Power Systems Inc.

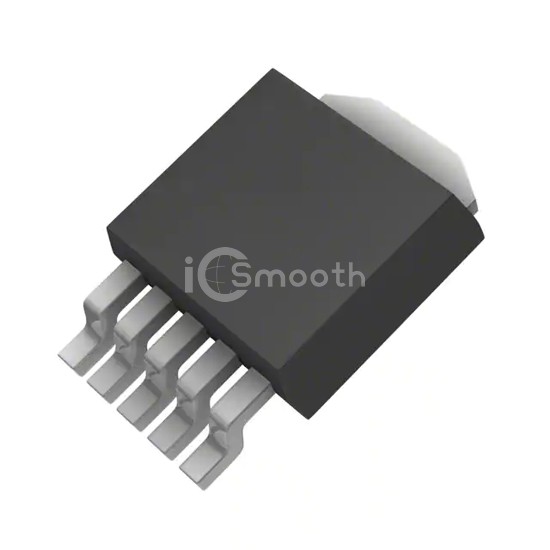

IC REG LINEAR 3.6V 500MA TO252-5

MP2014GZD-36-P is a PMIC - Voltage Regulators - Linear manufactured by Monolithic Power Systems Inc.. IC REG LINEAR 3.6V 500MA TO252-5. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TA), package / case TO-252-6, DPak (5 Leads + Tab), current - supply (max) 150 µA.

Datasheet Request a Quote

In Stock: 1,958

Tiered Pricing USD

500+ $1.1396 —

1,000+ $1.1042 -3%

1,500+ $1.0864 -5%

2,500+ $1.0668 -6%

3,500+ $1.0553 -7%

5,000+ $1.0442 -8% BEST

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	3.6V
Voltage - Output (Max)	-
Voltage Dropout (Max)	1.3V @ 500mA
Current - Output	500mA

Current - Quiescent (Iq)	17 µA
Current - Supply (Max)	150 µA
PSRR	57dB ~ 51dB (100Hz ~ 100kHz)
Control Features	Current Limit, Power Good
Protection Features	Over Current, Over Temperature, Short Circuit, Under Voltage Lockout (UVLO)
Operating Temperature	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	TO-252-6, DPak (5 Leads + Tab)
Supplier Device Package	TO-252-5
