Name: MP2013AGJE-C672-P
Brand: Monolithic Power Systems Inc.
SKU: MP2013AGJE-C672-P
Price: 1.00 USD
Availability: InStock

REF: MP2013AGJE-C672-P Monolithic Power Systems Inc.

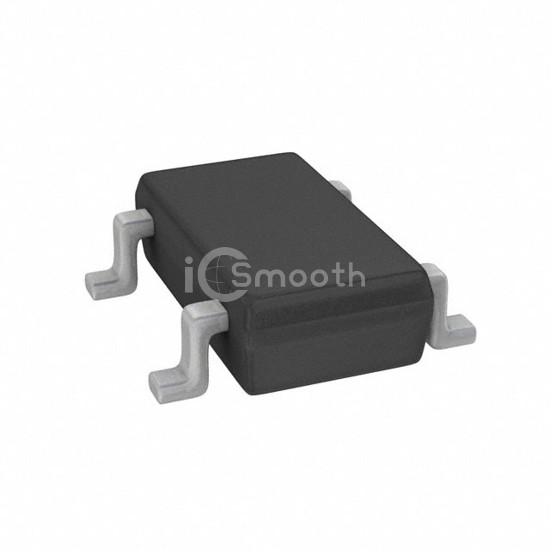

MP2013AGJE-C672-P

Monolithic Power Systems Inc.

IC REG LIN POS ADJ 150MA TSOT23

MP2013AGJE-C672-P is a PMIC - Voltage Regulators - Linear manufactured by Monolithic Power Systems Inc.. IC REG LIN POS ADJ 150MA TSOT23. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), package / case SOT-23-4 Thin, TSOT-23-4, current - supply (max) 22 µA.

Datasheet Request a Quote

In Stock: 5,422

Specifications

18 parameters

Product Status	Active
Output Configuration	Positive
Output Type	Adjustable
Number of Regulators	1
Voltage - Input (Max)	40V
Voltage - Output (Min/Fixed)	1.215V
Voltage - Output (Max)	15V
Voltage Dropout (Max)	0.85V @ 150mA
Current - Output	150mA

Current - Quiescent (Iq)	9 µA
Current - Supply (Max)	22 µA
PSRR	58dB ~ 41dB (100Hz ~ 1kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-23-4 Thin, TSOT-23-4
Supplier Device Package	TSOT-23-4
