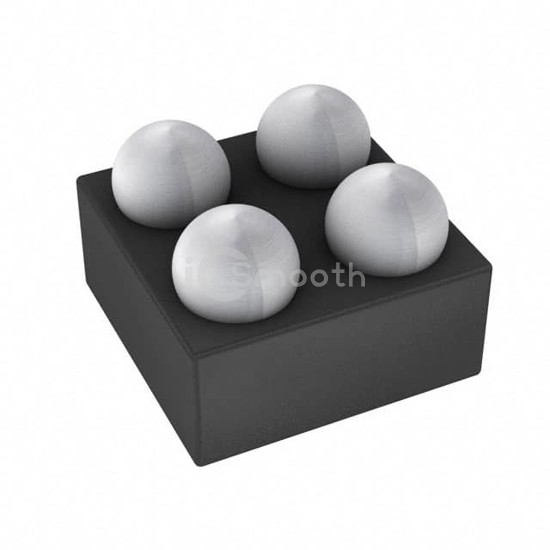

Name: MP20049DC-2.8-LF-Z
Brand: Monolithic Power Systems Inc.
SKU: MP20049DC-2.8-LF-Z
Price: 0.39 USD
Availability: InStock

REF: MP20049DC-2.8-LF-Z Monolithic Power Systems Inc.

MP20049DC-2.8-LF-Z

Monolithic Power Systems Inc.

IC REG LINEAR 2.8V 150MA 4WLCSP

MP20049DC-2.8-LF-Z is a PMIC - Voltage Regulators - Linear manufactured by Monolithic Power Systems Inc.. IC REG LINEAR 2.8V 150MA 4WLCSP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C, package / case 4-UFBGA, WLCSP, current - output 150mA.

Datasheet Request a Quote

In Stock: 9,644

Specifications

18 parameters

Product Status	Not For New Designs
Output Configuration	Positive
Output Type	Fixed
Number of Regulators	1
Voltage - Input (Max)	6V
Voltage - Output (Min/Fixed)	2.8V
Voltage - Output (Max)	-
Voltage Dropout (Max)	0.12V @ 120mA
Current - Output	150mA

Current - Quiescent (Iq)	75 µA
Current - Supply (Max)	-
PSRR	78dB ~ 55dB (1kHz ~ 100kHz)
Control Features	Enable
Protection Features	Over Current, Over Temperature
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	4-UFBGA, WLCSP
Supplier Device Package	4-WLCSP (0.82x0.82)
