MP1924HR-LF-Z

In Stock: 4,451
MP1924HR-LF-Z - Monolithic Power Systems Inc. - PMIC - Gate Drivers
REF: MP1924HR-LF-Z Monolithic Power Systems Inc.
MP1924HR-LF-Z

Monolithic Power Systems Inc.

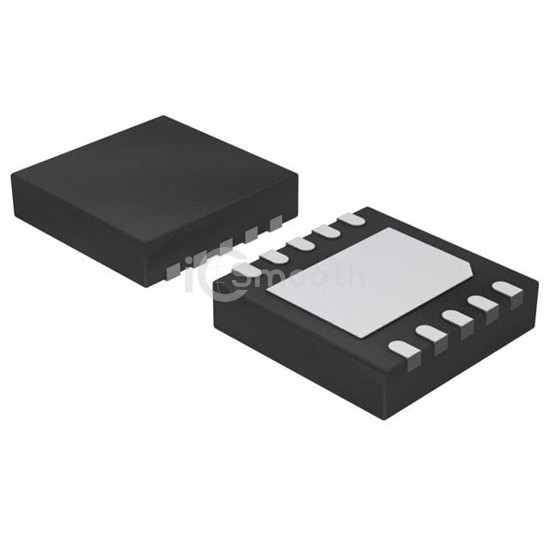

IC GATE DRVR HALF-BRIDGE 10QFN

MP1924HR-LF-Z is a PMIC - Gate Drivers manufactured by Monolithic Power Systems Inc.. IC GATE DRVR HALF-BRIDGE 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 16V, package / case 10-VDFN Exposed Pad.

Request a Quote

In Stock: 4,451

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 16V
Logic Voltage - VIL, VIH1V, 2.4V
Current - Peak Output (Source, Sink)4A, 4A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)118 V
Rise / Fall Time (Typ)15ns, 12ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-VDFN Exposed Pad
Supplier Device Package10-QFN (4x4)
