MP1924AHR-LF-Z

In Stock: 4,517
MP1924AHR-LF-Z - Monolithic Power Systems Inc. - PMIC - Gate Drivers
REF: MP1924AHR-LF-Z Monolithic Power Systems Inc.
MP1924AHR-LF-Z

Monolithic Power Systems Inc.

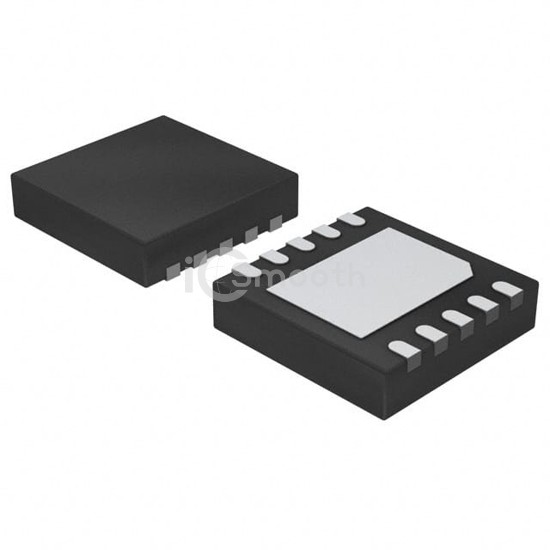

IC GATE DRVR HALF-BRIDGE 10QFN

MP1924AHR-LF-Z is a PMIC - Gate Drivers manufactured by Monolithic Power Systems Inc.. IC GATE DRVR HALF-BRIDGE 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 18V, package / case 10-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 4,517

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply4.5V ~ 18V
Logic Voltage - VIL, VIH-
Current - Peak Output (Source, Sink)2.6A, 4.5A
Input Type-
High Side Voltage - Max (Bootstrap)115 V
Rise / Fall Time (Typ)15ns, 12ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-VDFN Exposed Pad
Supplier Device Package10-QFN (4x4)
