MP1921HR-A-LF-P

In Stock: 2,106

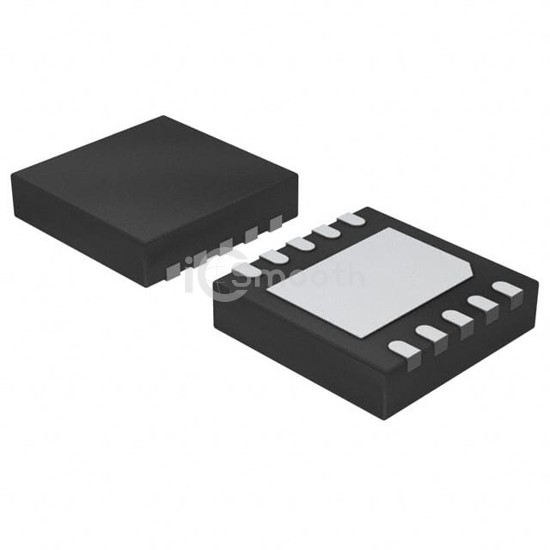

MP1921HR-A-LF-P - Monolithic Power Systems Inc. - PMIC - Gate Drivers
REF: MP1921HR-A-LF-P Monolithic Power Systems Inc.
MP1921HR-A-LF-P

Monolithic Power Systems Inc.

IC GATE DRVR HALF-BRIDGE 10QFN

MP1921HR-A-LF-P is a PMIC - Gate Drivers manufactured by Monolithic Power Systems Inc.. IC GATE DRVR HALF-BRIDGE 10QFN. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 9V ~ 18V, package / case 10-VDFN Exposed Pad.

Datasheet Request a Quote

In Stock: 2,106

Specifications

15 parameters
Product StatusActive
Driven ConfigurationHalf-Bridge
Channel TypeIndependent
Number of Drivers2
Gate TypeN-Channel MOSFET
Voltage - Supply9V ~ 18V
Logic Voltage - VIL, VIH1V, 2.4V
Current - Peak Output (Source, Sink)2.5A, 2.5A
Input TypeNon-Inverting
High Side Voltage - Max (Bootstrap)120 V
Rise / Fall Time (Typ)12ns, 9ns
Operating Temperature-40°C ~ 125°C (TJ)
Mounting TypeSurface Mount
Package / Case10-VDFN Exposed Pad
Supplier Device Package10-QFN (4x4)
