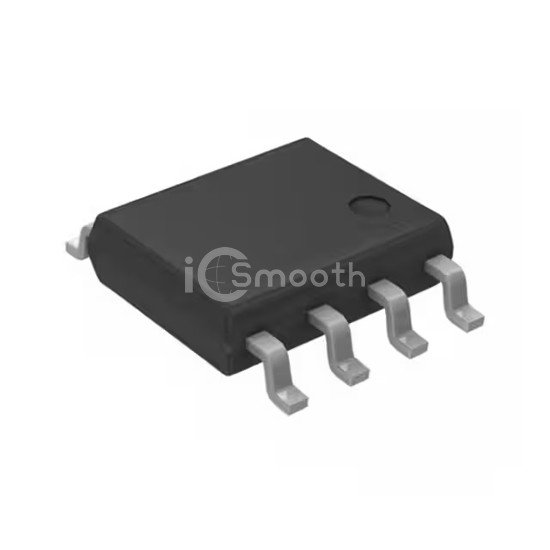

Name: MCS1803GS-10-P
Brand: Monolithic Power Systems Inc.
SKU: MCS1803GS-10-P
Price: 3.19 USD
Availability: InStock

REF: MCS1803GS-10-P Monolithic Power Systems Inc.

MCS1803GS-10-P

Monolithic Power Systems Inc.

5V, LINEAR HALL-EFFECT CURRENT S

MCS1803GS-10-P is a Current Sensors manufactured by Monolithic Power Systems Inc.. 5V, LINEAR HALL-EFFECT CURRENT S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 370

Tiered Pricing USD

1+ $3.1900 —

5+ $2.8460 -11%

10+ $2.7190 -15%

25+ $2.5680 -19%

50+ $2.4644 -23%

100+ $2.3698 -26% BEST

Specifications

18 parameters

Product Status	Active
For Measuring	AC/DC
Sensor Type	Hall Effect
Current - Sensing	±10A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	200mV/A
Frequency	100kHz
Linearity	±0.5%

Accuracy	±2.5%
Voltage - Supply	4.5V ~ 5.5V
Response Time	5µs
Current - Supply (Max)	10.5mA
Operating Temperature	-40°C ~ 125°C (TJ)
Polarization	Bidirectional
Mounting Type	Surface Mount
Package / Case	8-SOIC (0.154", 3.90mm Width)
Supplier Device Package	8-SOIC
