MCS1801GS-12-P

In Stock: 5,773

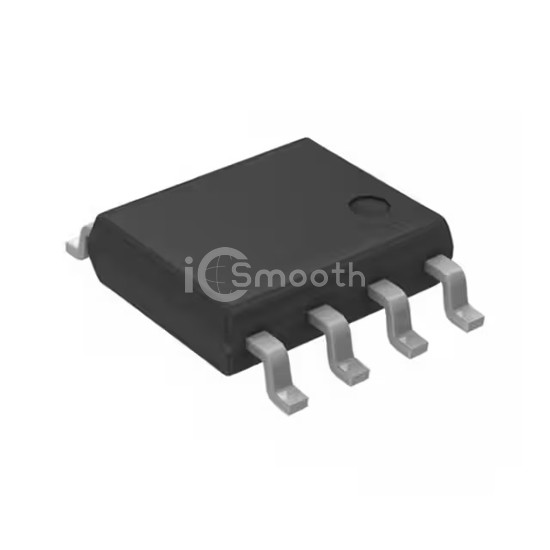

MCS1801GS-12-P - Monolithic Power Systems Inc. - Current Sensors
REF: MCS1801GS-12-P Monolithic Power Systems Inc.
MCS1801GS-12-P

Monolithic Power Systems Inc.

5V, LINEAR HALL-EFFECT CURRENT S

MCS1801GS-12-P is a Current Sensors manufactured by Monolithic Power Systems Inc.. 5V, LINEAR HALL-EFFECT CURRENT S. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 8-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 5,773

Specifications

18 parameters
Product StatusActive
For MeasuringAC/DC
Sensor TypeHall Effect
Current - Sensing±12.5A
Number of Channels1
OutputRatiometric, Voltage
Sensitivity160mV/A
Frequency100kHz
Linearity±0.5%
Accuracy±3%
Voltage - Supply4.5V ~ 5.5V
Response Time5µs
Current - Supply (Max)10.5mA
Operating Temperature-40°C ~ 125°C (TJ)
PolarizationBidirectional
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154", 3.90mm Width)
Supplier Device Package8-SOIC
