HR1002AGSE-P

In Stock: 471

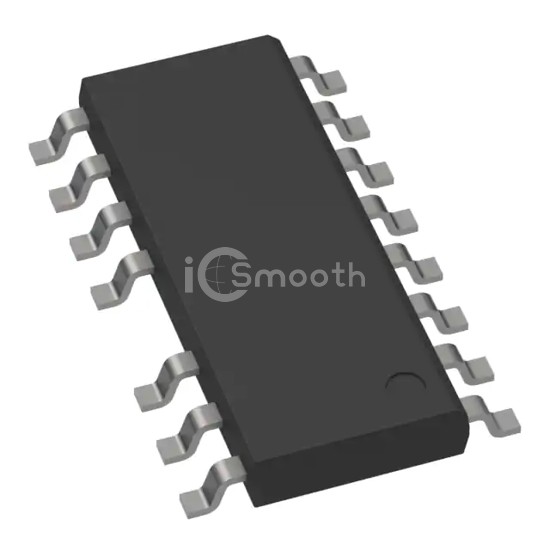

HR1002AGSE-P - Monolithic Power Systems Inc. - PMIC - AC DC Converters, Offline Switchers
REF: HR1002AGSE-P Monolithic Power Systems Inc.
HR1002AGSE-P

Monolithic Power Systems Inc.

IC OFFLINE SWITCH

HR1002AGSE-P is a PMIC - AC DC Converters, Offline Switchers manufactured by Monolithic Power Systems Inc.. IC OFFLINE SWITCH. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 13V ~ 15.5V, package / case 16-SOIC (0.154", 3.90mm Width), 15 Leads.

Datasheet Request a Quote

In Stock: 471

Tiered Pricing USD
1+ $2.8700 —
10+ $2.1410 -25%
25+ $1.9596 -32%
100+ $1.7605 -39% BEST

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown-
TopologyFlyback
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)13V ~ 15.5V
Duty Cycle50%
Frequency - Switching600kHz
Power (Watts)1.56 W
Fault ProtectionCurrent Limiting, Over Temperature, Short Circuit
Control FeaturesFrequency Control, Soft Start
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width), 15 Leads
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
