HR1001CGS-Z

In Stock: 1,514
HR1001CGS-Z - Monolithic Power Systems Inc. - PMIC - AC DC Converters, Offline Switchers
REF: HR1001CGS-Z Monolithic Power Systems Inc.
HR1001CGS-Z

Monolithic Power Systems Inc.

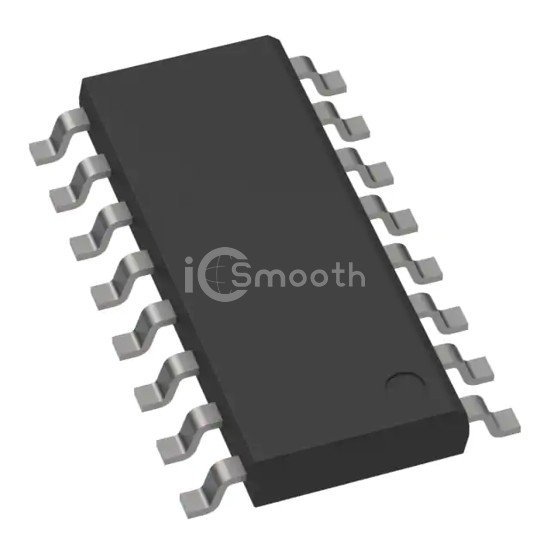

IC OFFLINE SWITCH 16SOIC

HR1001CGS-Z is a PMIC - AC DC Converters, Offline Switchers manufactured by Monolithic Power Systems Inc.. IC OFFLINE SWITCH 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 8.9V ~ 15.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 1,514

Tiered Pricing USD
2,500+ $1.2557 —
5,000+ $1.2300 -2%
7,500+ $1.2170 -3% BEST

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
Topology-
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)8.9V ~ 15.5V
Duty Cycle50%
Frequency - Switching600kHz
Power (Watts)1.56 W
Fault ProtectionBrown-Out, Capacitive Mode, Over-Current
Control FeaturesSoft Start
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
