HR1000AGS

In Stock: 4,087

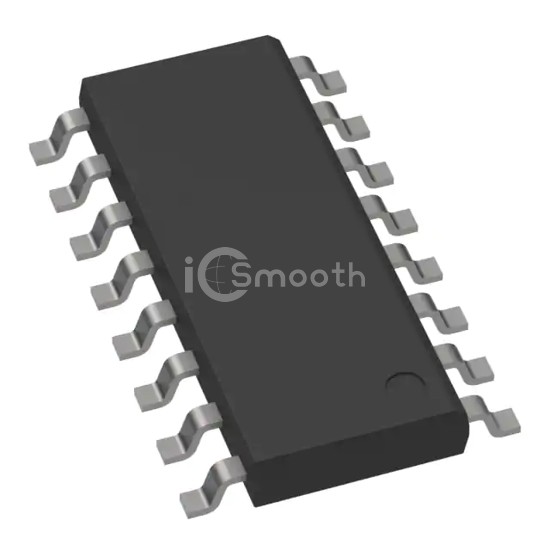

HR1000AGS - Monolithic Power Systems Inc. - PMIC - AC DC Converters, Offline Switchers
REF: HR1000AGS Monolithic Power Systems Inc.
HR1000AGS

Monolithic Power Systems Inc.

IC OFFLINE SW HALF-BRDG 16SOIC

HR1000AGS is a PMIC - AC DC Converters, Offline Switchers manufactured by Monolithic Power Systems Inc.. IC OFFLINE SW HALF-BRDG 16SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 125°C (TJ), voltage - supply (vcc/vdd) 13V ~ 15.5V, package / case 16-SOIC (0.154", 3.90mm Width).

Datasheet Request a Quote

In Stock: 4,087

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)No
Voltage - Breakdown-
TopologyHalf-Bridge
Voltage - Start Up-
Voltage - Supply (Vcc/Vdd)13V ~ 15.5V
Duty Cycle50%
Frequency - SwitchingUp to 600kHz
Power (Watts)-
Fault ProtectionOver Temperature, Over Voltage
Control FeaturesSoft Start
Operating Temperature-40°C ~ 125°C (TJ)
Package / Case16-SOIC (0.154", 3.90mm Width)
Supplier Device Package16-SOIC
Mounting TypeSurface Mount
