HF01B04DS-LF

In Stock: 3,091

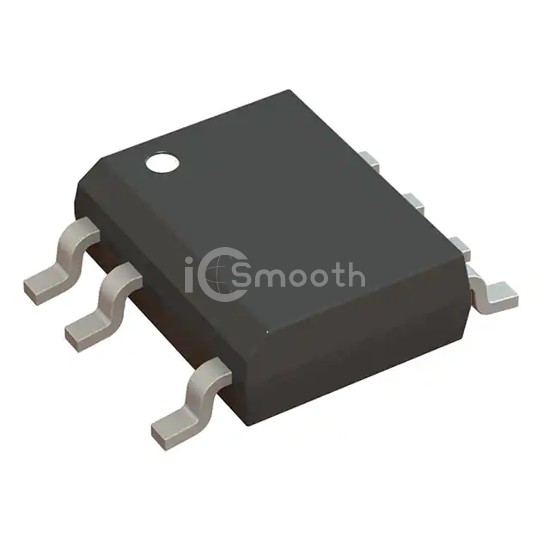

HF01B04DS-LF - Monolithic Power Systems Inc. - PMIC - AC DC Converters, Offline Switchers
REF: HF01B04DS-LF Monolithic Power Systems Inc.
HF01B04DS-LF

Monolithic Power Systems Inc.

IC REG CTRLR FLYBK PWM 8SOIC

HF01B04DS-LF is a PMIC - AC DC Converters, Offline Switchers manufactured by Monolithic Power Systems Inc.. IC REG CTRLR FLYBK PWM 8SOIC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply (vcc/vdd) 8V ~ 20V, package / case 8-SOIC (0.154", 3.90mm Width), 7 Leads.

Datasheet Request a Quote

In Stock: 3,091

Specifications

16 parameters
Product StatusActive
Output IsolationIsolated
Internal Switch(s)Yes
Voltage - Breakdown700V
TopologyFlyback
Voltage - Start Up11.8 V
Voltage - Supply (Vcc/Vdd)8V ~ 20V
Duty Cycle-
Frequency - SwitchingUp to 150kHz
Power (Watts)23 W
Fault ProtectionOver Load, Over Temperature, Over Voltage
Control Features-
Operating Temperature-40°C ~ 85°C (TA)
Package / Case8-SOIC (0.154", 3.90mm Width), 7 Leads
Supplier Device Package8-SOIC-7B
Mounting TypeSurface Mount
