USB-2SP4T-63H

In Stock: 6,527

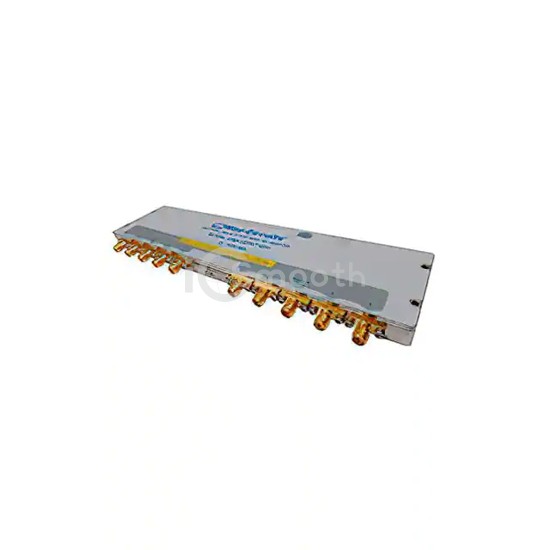

USB-2SP4T-63H - Mini-Circuits - RF Switches
REF: USB-2SP4T-63H Mini-Circuits
USB-2SP4T-63H

Mini-Circuits

IC RF SWITCH SP4T 6GHZ 8SOIC

USB-2SP4T-63H is a RF Switches manufactured by Mini-Circuits. IC RF SWITCH SP4T 6GHZ 8SOIC. Key specifications: operating temperature 0°C ~ 50°C, voltage - supply 4.75V ~ 5.25V, package / case Module, SMA Connectors, frequency range 10MHz ~ 6GHz.

Datasheet Request a Quote

In Stock: 6,527

Specifications

16 parameters
Product StatusActive
RF TypeCellular
TopologyAbsorptive
CircuitSP4T
Frequency Range10MHz ~ 6GHz
Isolation36dB
Insertion Loss3.3dB
Test Frequency6GHz
P1dB33dBm
IIP350dBm
Features-
Impedance50Ohm
Voltage - Supply4.75V ~ 5.25V
Operating Temperature0°C ~ 50°C
Package / CaseModule, SMA Connectors
Supplier Device Package-
