M3SWA-2-50DRB+

In Stock: 1,000

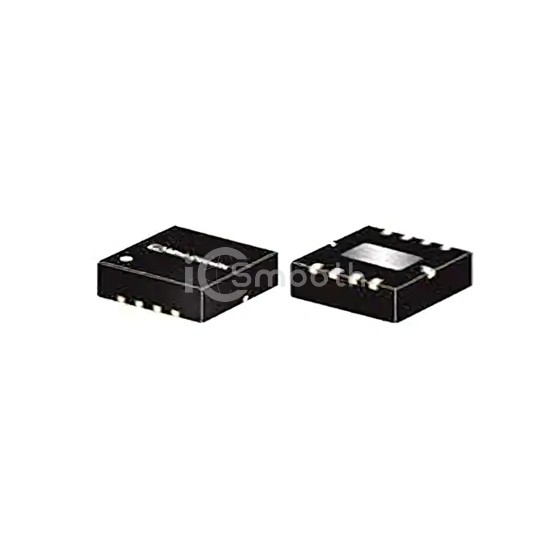

M3SWA-2-50DRB+ - Mini-Circuits - RF Switches
REF: M3SWA-2-50DRB+ Mini-Circuits
M3SWA-2-50DRB+

Mini-Circuits

IC RF SWITCH SPDT 4.5GHZ 8DFN

M3SWA-2-50DRB+ is a RF Switches manufactured by Mini-Circuits. IC RF SWITCH SPDT 4.5GHZ 8DFN. Key specifications: operating temperature -55°C ~ 100°C, voltage - supply 4.75V ~ 5.25V, package / case 8-TDFN Exposed Pad, frequency range 0Hz ~ 4.5GHz.

Datasheet Request a Quote

In Stock: 1,000

Tiered Pricing USD
1+ $22.7000 —
20+ $8.2100 -64%
50+ $6.7000 -70%
100+ $6.0000 -74%
200+ $5.7200 -75%
500+ $5.3200 -77% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyAbsorptive
CircuitSPDT
Frequency Range0Hz ~ 4.5GHz
Isolation32dB
Insertion Loss1.4dB
Test Frequency4.5GHz
P1dB25.4dBm
IIP346.5dBm
Features-
Impedance50Ohm
Voltage - Supply4.75V ~ 5.25V
Operating Temperature-55°C ~ 100°C
Package / Case8-TDFN Exposed Pad
Supplier Device Package8-DFN (3.25x3.25)
