JSW6-23DR-75+

In Stock: 6,758

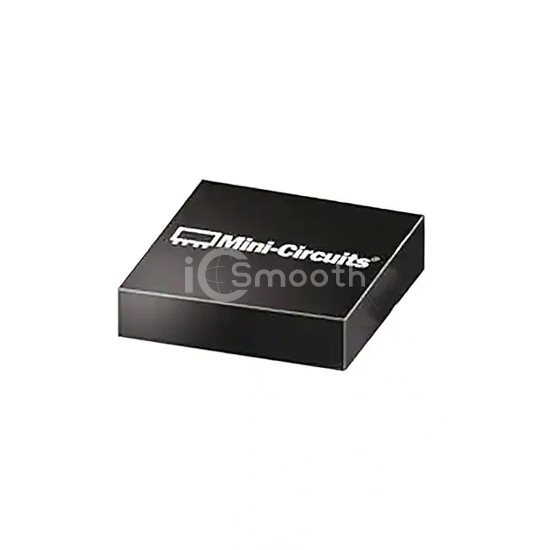

JSW6-23DR-75+ - Mini-Circuits - RF Switches
REF: JSW6-23DR-75+ Mini-Circuits
JSW6-23DR-75+

Mini-Circuits

IC RF SWITCH SP6T 2GHZ 14QFN

JSW6-23DR-75+ is a RF Switches manufactured by Mini-Circuits. IC RF SWITCH SP6T 2GHZ 14QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.5V ~ 4.8V, package / case 14-UFQFN Exposed Pad, frequency range 5MHz ~ 2GHz.

Datasheet Request a Quote

In Stock: 6,758

Tiered Pricing USD
2,000+ $2.4800 —
4,000+ $2.3750 -4% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCATV, SatCom
TopologyReflective
CircuitSP6T
Frequency Range5MHz ~ 2GHz
Isolation25dB
Insertion Loss1.1dB
Test Frequency2GHz
P1dB-
IIP359dBm
Features-
Impedance75Ohm
Voltage - Supply2.5V ~ 4.8V
Operating Temperature-40°C ~ 85°C
Package / Case14-UFQFN Exposed Pad
Supplier Device Package14-QFN (2x2)
