JSW4-272DR+

In Stock: 197

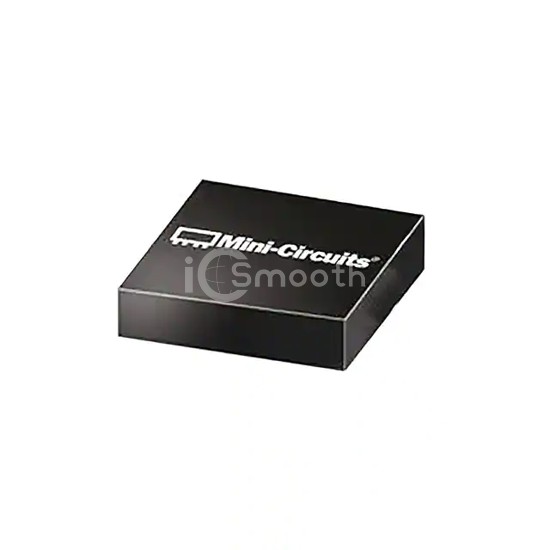

JSW4-272DR+ - Mini-Circuits - RF Switches
REF: JSW4-272DR+ Mini-Circuits
JSW4-272DR+

Mini-Circuits

IC RF SWITCH SP4T 2.7GHZ 14QFN

JSW4-272DR+ is a RF Switches manufactured by Mini-Circuits. IC RF SWITCH SP4T 2.7GHZ 14QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.5V ~ 4.8V, package / case 14-UFQFN Exposed Pad, frequency range 5MHz ~ 2.7GHz.

Datasheet Request a Quote

In Stock: 197

Tiered Pricing USD
1+ $18.1300 —
50+ $10.4000 -43%
100+ $6.3000 -65%
200+ $3.5500 -80% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCATV, SatCom
TopologyReflective
CircuitSP4T
Frequency Range5MHz ~ 2.7GHz
Isolation27dB
Insertion Loss0.6dB
Test Frequency2.7GHz
P1dB-
IIP359dBm
Features-
Impedance50Ohm
Voltage - Supply2.5V ~ 4.8V
Operating Temperature-40°C ~ 85°C
Package / Case14-UFQFN Exposed Pad
Supplier Device Package14-QFN (2x2)
