JSW2-63VHDRP+

In Stock: 2,678

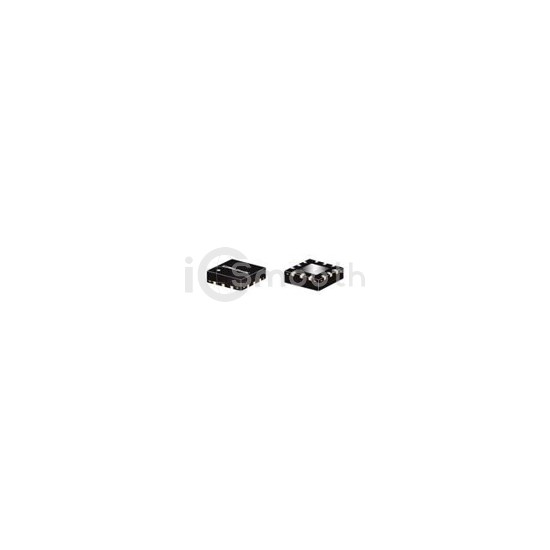

JSW2-63VHDRP+ - Mini-Circuits - RF Switches
REF: JSW2-63VHDRP+ Mini-Circuits
JSW2-63VHDRP+

Mini-Circuits

IC RF SWITCH SPDT 6GHZ 12QFN

JSW2-63VHDRP+ is a RF Switches manufactured by Mini-Circuits. IC RF SWITCH SPDT 6GHZ 12QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 5.5V, package / case 12-UFQFN Exposed Pad, frequency range 5MHz ~ 6GHz.

Datasheet Request a Quote

In Stock: 2,678

Tiered Pricing USD
3,000+ $1.3000 —
6,000+ $1.2375 -5% BEST

Specifications

16 parameters
Product StatusActive
RF TypeGeneral Purpose
TopologyReflective
CircuitSPDT
Frequency Range5MHz ~ 6GHz
Isolation16dB
Insertion Loss0.9dB
Test Frequency6GHz
P1dB-
IIP381dBm
Features-
Impedance50Ohm
Voltage - Supply2.3V ~ 5.5V
Operating Temperature-40°C ~ 85°C
Package / Case12-UFQFN Exposed Pad
Supplier Device Package12-QFN (2x2)
