JSW2-33DR-75+

In Stock: 2,200

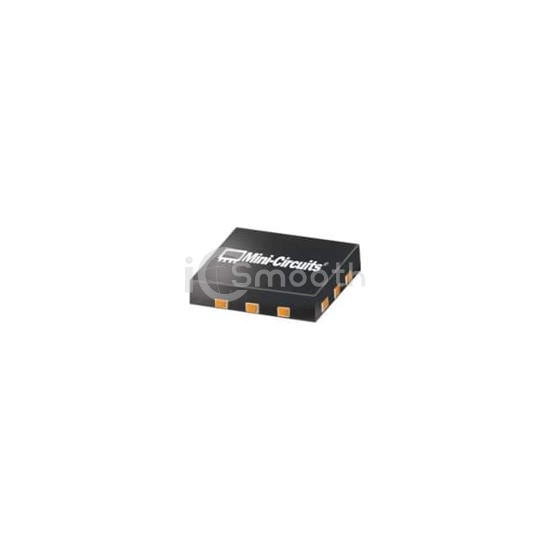

JSW2-33DR-75+ - Mini-Circuits - RF Switches
REF: JSW2-33DR-75+ Mini-Circuits
JSW2-33DR-75+

Mini-Circuits

IC RF SWITCH SPDT 3GHZ 12QFN

JSW2-33DR-75+ is a RF Switches manufactured by Mini-Circuits. IC RF SWITCH SPDT 3GHZ 12QFN. Key specifications: operating temperature -40°C ~ 85°C, voltage - supply 2.3V ~ 4.8V, package / case 12-UFQFN Exposed Pad, frequency range 5MHz ~ 3GHz.

Datasheet Request a Quote

In Stock: 2,200

Tiered Pricing USD
3,000+ $0.9800 —
6,000+ $0.9375 -4% BEST

Specifications

16 parameters
Product StatusActive
RF TypeCATV, SatCom
TopologyReflective
CircuitSPDT
Frequency Range5MHz ~ 3GHz
Isolation31dB
Insertion Loss0.53dB
Test Frequency3GHz
P1dB-
IIP363dBm
Features-
Impedance75Ohm
Voltage - Supply2.3V ~ 4.8V
Operating Temperature-40°C ~ 85°C
Package / Case12-UFQFN Exposed Pad
Supplier Device Package12-QFN (2x2)
